Machine characteristics
● The ball screws are C3-grade imported ball screws. A large-lead design is adopted to ensure rapid feed motion and to shorten non-cutting time. ● The Z-axis adopts a counterweight-free design, which reduces the inertia of the headstock, increases dynamic response, and enables high-precision machining. ● The ball screws of all three axes are pre-tensioned to minimize thermal elongation and improve the overall accuracy of the machine tool. ● The main structural components are optimized using finite element analysis (FEA) to achieve excellent structural rigidity and machining accuracy.
|
 |

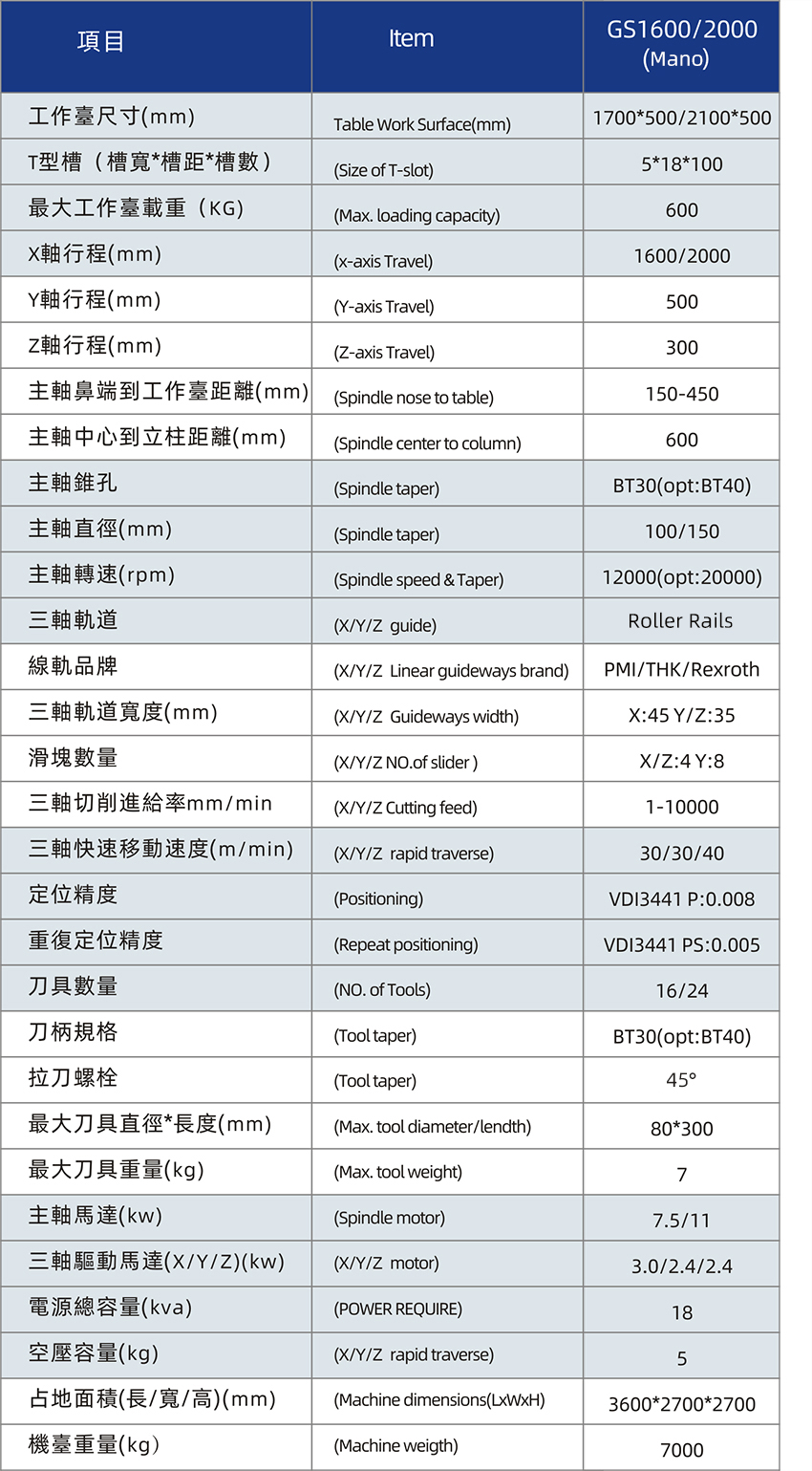

Mechanical Specification Sheet
Standard Accessories
● waterplane
● Fully enclosed shield
● Belt head (BT40) 10000rpm spindle
● 24 knives A.T.C (knife arm type) waterplane
● Central Lubrication System
● Operation indicator
● Spindle ring blowing (belt type)
● Tools and Toolbox
● Rear chip washing device
● Working cleaning gun
● water gun
● Level adjustment block and leveling screw
● Electric box heat exchanger
● Chip blowing device
● Spindle oil temperature cooling device
● Operating instructions with parts list
● Spindle 4-hole water spray (belt type)
Special Accessories
|
● CT-40 broach screw ● Belt type 8000rpm spindle ● Direct-coupled spindle 12000/15000rpm ● 20bar high pressure spindle water outlet ● 32 knife arm type ● Complete set of four/five-axis rotary table ● Automatic shutdown device Automatic tool length ● measurement ● Oil-water separator ● Crawler chip remover ● Oil mist recovery device |
|
