TH63-L Horizontal Machining Center

Machine Characteristics

● The X and Y axes adopt size-55 linear guideways, while the Z axis adopts a box-type guideway design, improving the rigidity of the machine tool.

● The Z axis uses a dual-cylinder counterweight design, reducing the inertia of the spindle head, improving dynamic response, and achieving high-precision machining.

● The ball screws of all three axes are pre-tensioned to minimize thermal elongation and improve machining accuracy.

● The spindle is available in BT40 and BT50 interfaces, offering customers multiple configuration options.

● The spindle is available in multiple drive types, including belt-driven, direct-drive, ZF gearbox drive, and full gear-drive configurations, significantly increasing spindle torque.

● The main structural components are optimized using finite element analysis (FEA) to achieve excellent structural rigidity and machining accuracy.

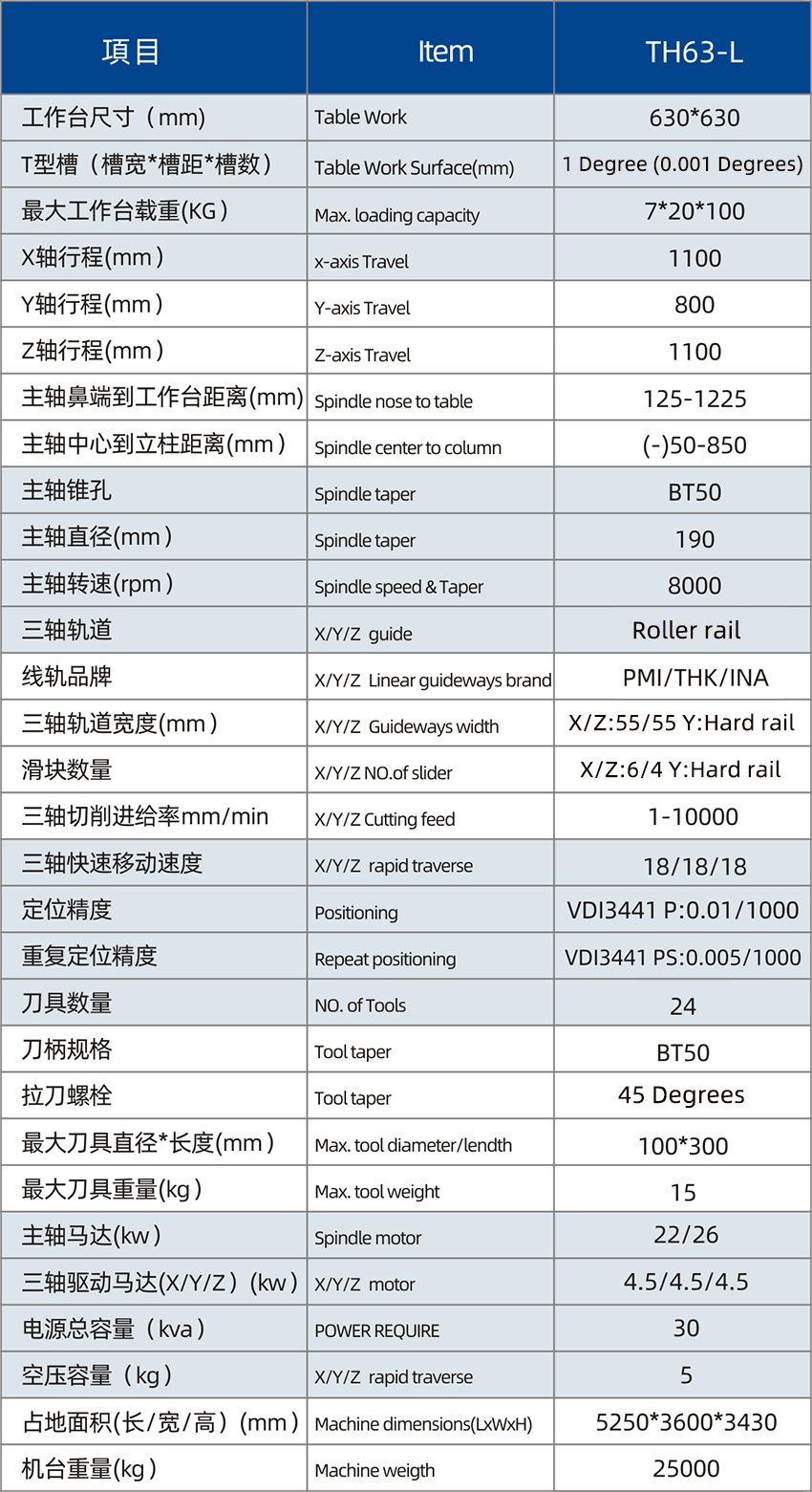

Mechanical Specification Sheet

Standard Accessories

Special Accessories
