WL1814-L Horizontal Machining Center
Release Date：2021-04-24 11:45:55 Number of visits：132
Machine Characteristics
● X,Y axis adopts 55mm rail design, Z axis adopts rectangular rail design. To improve the rigidity of the machine tool.
● The Z-axis dual-cylinder counterweight design reduces the inertia of the spindle box and improves the response speed to achieve high-precision machining.
● The three-axis screw rod is pre-stretched to reduce thermal extension and improve the accuracy of the machine tool.
● The spindle adopts BT40 and BT50 design, providing customers with multiple model options.
● The main shaft provides a belt main shaft, which is directly connected to the main shaft. ZF gear drive and full gear drive increase main shaft torque.
● The main structural parts are designed through finite element analysis to show the best structural stability and accuracy.

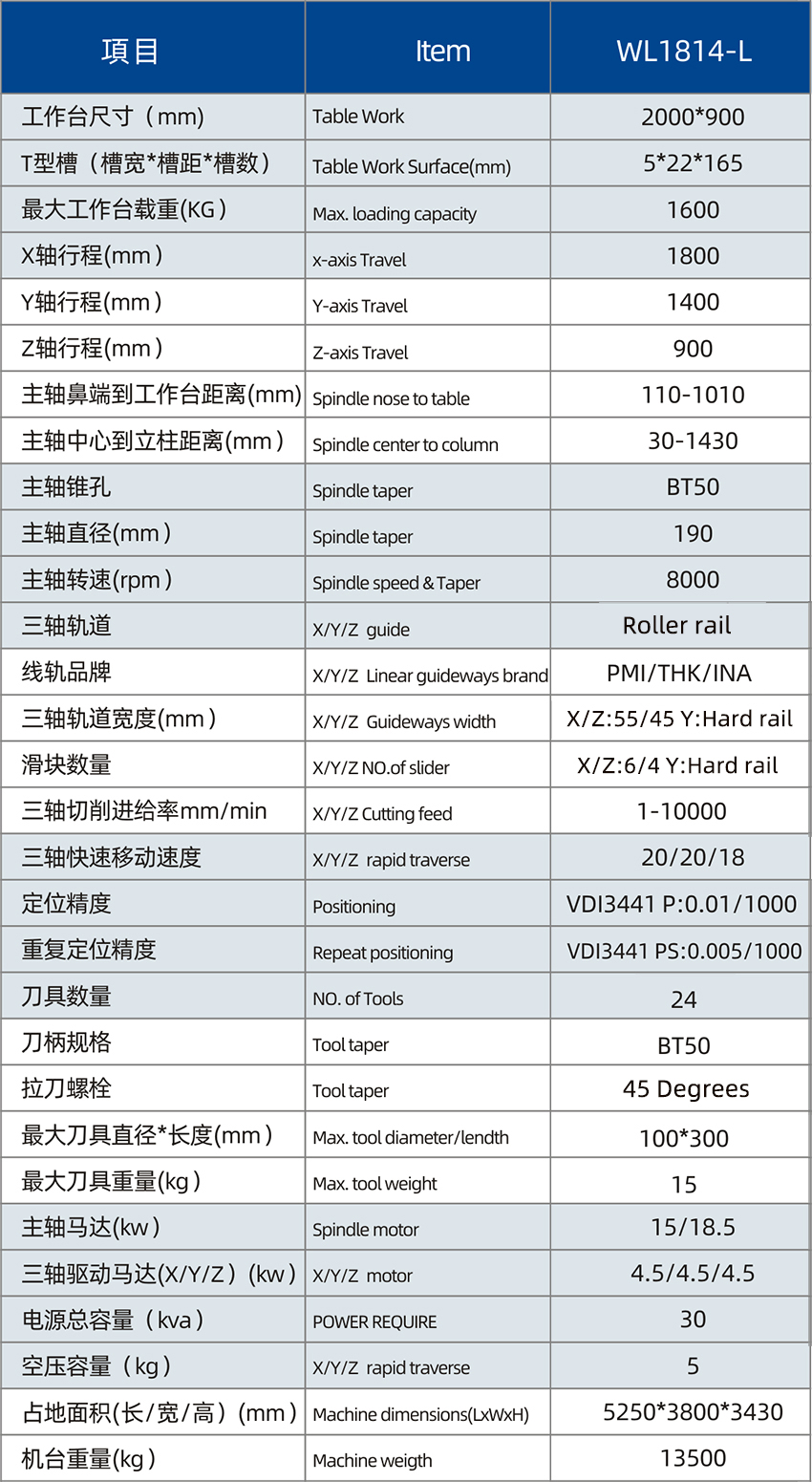

Mechanical Specification Sheet
Standard Accessories
● Belt head (BT40) 10000rpm spindle
● 24 knives A.T.C (knife arm type)
● waterplane
● Fully enclosed shield
● working lamp
● Central Lubrication System
● Operation indicator
● Spindle ring blowing (belt type)
● Tools and Toolbox
● Working cleaning gun
● water gun
● Level adjustment block and leveling screw
● Electric box heat exchanger
● Chip blowing device
● Spindle oil temperature cooling device
● Operating instructions with parts list
● Spindle 4-hole water spray (belt type)
Special Accessories
|
● BBT-50 broach screw ● Belt type 8000rpm spindle ● Direct-coupled spindle 12000/15000rpm ● 20bar high pressure spindle ● water outlet ● 32 knife arm type
● Complete set of four/five-axis rotary table
● Automatic shutdown device ● Automatic tool length measurement ● Oil-water separator ● Crawler chip remover ● Oil mist recovery device |
